The Sheers:

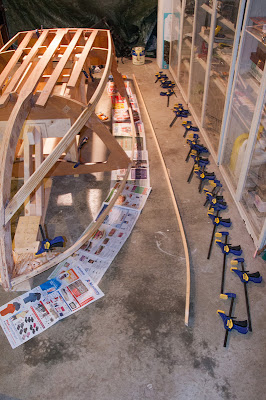

"Youll never have enough clamps." Start building a boat, and youre going to hear this early-on from other boatbuilders. By the time you get to installing your sheer clamps, youre going to need them. (I wonder if thats why theyre called sheer "clamps"?)
Sheer clamps, also frequently referred to as "sheers," are the long boards that form the top rim of the sides of the boat. They extend from the outer corners of the transom, and meet at the stem, forming the pointed bow of the boat.
In any case, the Irwin "Quick Grip" bar clamps youll see a lot of in my photos are great all-around clamps. They arent perfect, however, nor are they indestructible. Although I had many 6" and 12" sizes of them by the time I was ready to install my sheers, I still needed to get larger 24" clamps of both the Quick Grip and standard bar clamp varieties. The 24" Quick Grip clamps were perfect for holding the sheers upward into position. But, this style of clamp just couldnt complete the bend of the sheers up forward. For this, the standard bar clamps do a much better job.
Sheer clamp notch in the transom frame. This shallow notch would later pose its own challenge.
A 24" Quick Grip clamp (back) holds the sheer upward into position. A 6" clamp (front) is being used as a lever to twist the sheer into the required vertical orientation.
A 24" standard bar clamp holds the forward tip of the sheer into its fully-curved position against the breasthook and stem.
The stock for the sheer clamps themselves was again Southern Yellow Pine, as with the chine logs. This was for the same reasons of the wood being both inexpensive and easy to bend. The sheers are built from two layers of 1-1/4" x 5/8" x 12 material. I ripped the 4 strips from a 12 "1x6" board from Lowes that had fairly vertical grain. Of course, a so-called "1x6" is in reality only 3/4" thick. I planed the 4 pieces down from 3/4" to 5/8" using a small planer/jointer my dad bought from Harbor Freight. In retrospect, I probably shouldve planed down the board first, then ripped the 4 pieces.
Overall fitting of the sheers was easier than the chines. The bevel in the forward frame notch was milder for the sheer than was needed for the chines. Unlike the chine, which twists as it bends, the sheer is supposed to remain in a vertical orientation.
Prior to bending the sheers fully, I wrapped towels around the wood and poured boiling water on them, then let them soak a while. After doing this a couple of times over the course of a couple of hours, the sheers bent easily into place. I measured the angle at the junction of the breasthook and stem, and used this as a guide to cut the forward tip of the sheers. After some additional fitting, I clamped the sheers into place and let them sit overnight. Later, I drilled holes & screwed them into position at the breasthook, frame #2, and frame #1.
I could not determine a way to drive screws through the sheer and into the transom frame, however. This was due to the shallow nature of the transom frames sheer notch. Rather than drive a screw through the back of the transom and into the end grain of the sheer, I decided to simply let the epoxy hold it for the time being.
The instructions state that you need to drive screws through both sheer layers & into the frames. However, I did not see a way to hold the sheer into place long enough to let the epoxy dry without driving screws into the frames. This was particularly the case because I had to force the sheers into a vertical orientation by using bar clamps as levers, as shown above.
Once the first sheer layer had been fitted, it was time to disassemble, add thickened epoxy, and re-assemble. I used System Three Gel Magic, thickened with mahogany sawdust. I attached the sheers at the breasthook and frame #2 first. Then later, after the epoxy cured at those joints, I finished the aft section.
Forward tip of starboard sheer (layer 1) attached.
Forward tip of port sheer (layer 1) attached.
After the first layer was on, I sanded it in preparation for adding the second layer. Fitting the second layer was easier, since it basically just had to lay on top of the first. This is where you need a lot of clamps!
Soaking the forward end of sheer layer #2.
Starboard sheer layer 2 bent & fitted into position.
2" silicon bronze screws were staggered between those used to attach layer #1.
Disassembled & ready for epoxy.
Waiting for the epoxy to cure. I used Glen-L Poxy Shield thickened with #2 silica and mahogany sawdust.
Et voilà!
Since layer 1 was screwed directly to the frames, I drove 1-1/4" silicon bronze screws through both sheer layers on either side of each frame. I hope I countersunk these adequately for fairing.
